Configuring proxy server settings
About
Starting from Miradore 3.2.0, it has been possible to configure Miradore components, on some local network (e.g. Miradore clients and connectors) to use a third-party proxy server to establish a HTTP(S) connection to Miradore server that is located on some public or external network (Picture 1).

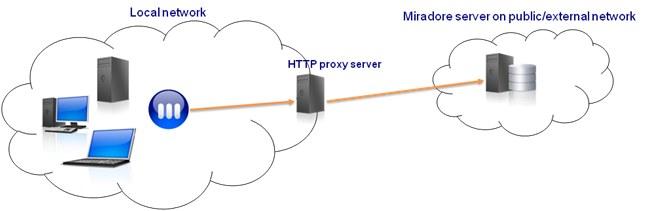

Picture 1: Via a proxy server, Miradore clients and connectors can connect to Miradore server which is located on a public/external network.
Proxy settings for Miradore clients
Proxy configurations that Miradore clients (for Windows, Linux, and OS x) use can be managed from "Administration > System settings > Clients > General > Proxy configurations" in the management console of Miradore (Picture 2). The proxy configurations are then saved to Miradore as Proxy items.
Notice that a proxy configuration must be attached to some server network configuration before it can be actually used by Miradore clients.

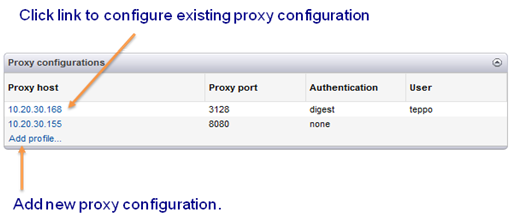

Picture 2: Proxy configurations
For more information:
Configuring client-server connectivity
Proxy settings for connectors
For connectors, the proxy configurations are set with the installer of the connector in question. The proxy settings for each connector are described in more detail on the "Installation using Windows Installer" section of the connector item's help page.
Help and instructions for connectors:
Additional information
Server network configuration item attributes
